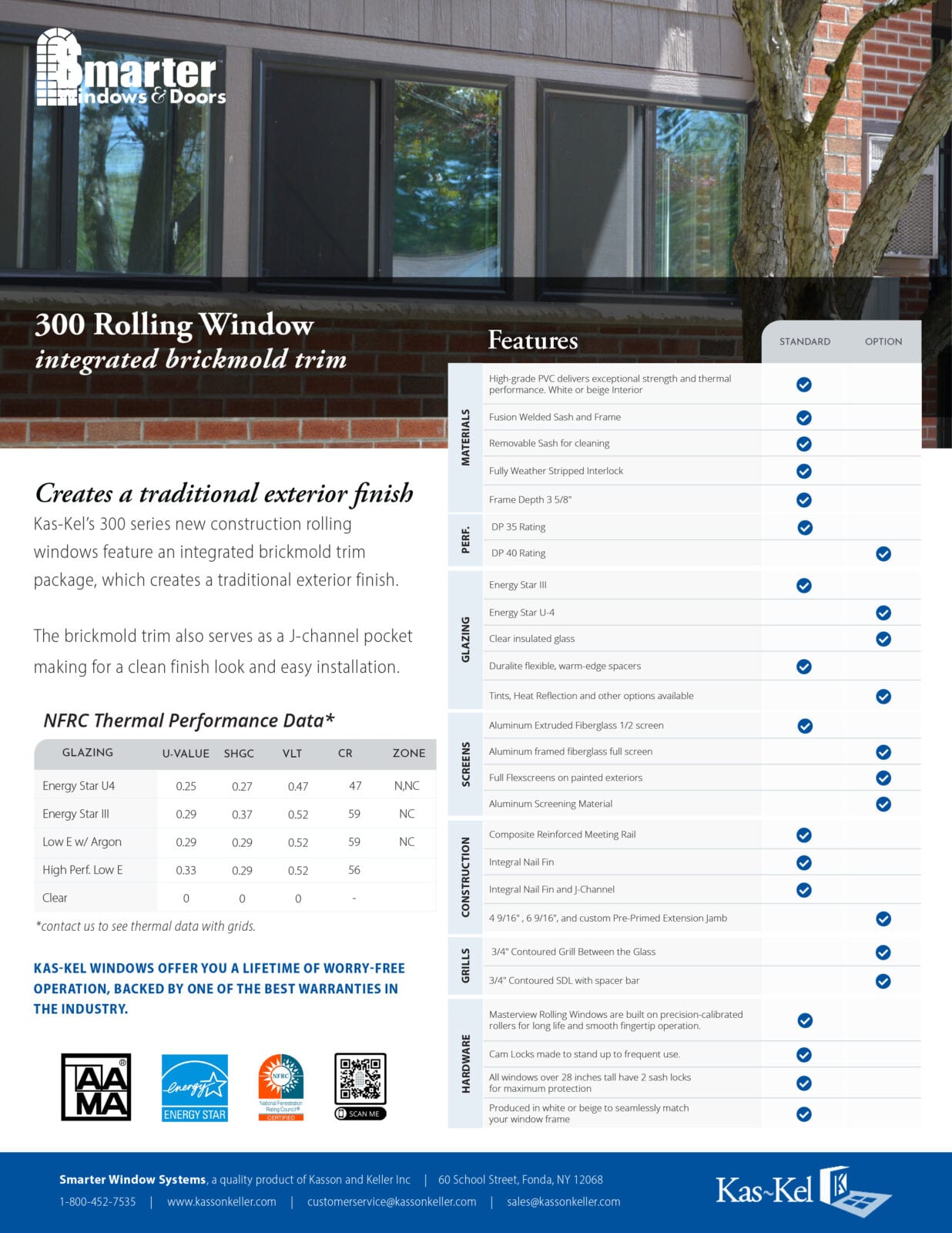

300 Rolling Window

creates a traditional exterior finish

Description

Brickmold Series

Smarter’s 300 series new construction rolling windows feature an integrated brickmold trim package, which creates a traditional exterior finish.

The brickmold trim also serves as a J-channel pocket making for a clean finish look and easy installation.

Horizontal views and maximum daylighting

Rolling windows make the most of a horizontal view while allowing for ventilation through a single or multiple sashes depending on the configuration. Maximize natural light filtration indoors with a rolling window.

Also called sliding windows, the rolling window involves at least two sashes side by side. The sashes can be opened in three configurations, either one is open while the adjacent one is closed, or both sashes can be opened simultaneously.

In a three-sash combination, the center sash remains stationary while the two sashes on either side can be rolled open for ventilation.

Glass Options

Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Energy Star III

Options

Energy Star U-4
Clear insulated glass (3/4″)
Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Energy Star III

More About Glass Options

Performance

Standard

DP 35 Rating

Options

DP 40 Rating
DP 50 Rating

More about DP Ratings

Materials

Standard

High-grade PVC delivers exceptional strength and thermal performance
Welded Sash and Frame
Sloped Sill with Interlocking Leg
Both Sash Tilt In/Full Screen
Aluminum Reinforced Meeting Rail
Fully Weather Stripped Interlock
Frame Depth 3 5/8″

Options

Integral Nail Fin
Integral Nail Fin and J-Channel
4 9/16″ Pre-Primed Extension Jamb
6 9/16″ Pre-Primed Extension Jamb

More About Vinyl Construction

Hardware

Standard

Masterview Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation. Sash is easily removed for cleaning.

Superior Cam Lock

Our Cam Locks are made of alloyed cast steel to stand up to frequent use.
(inferior vinyl windows have plastic locks)
All windows over 28 inches tall have 2 sash locks for maximum protection
Produced in white or beige to seamlessly match your window frame
Increased leverage assures a weather tight seal when locked

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

More about Hardware

Screens

Standard

Aluminum Extruded Fiberglass 1/2 screen

Options

Aluminum framed fiberglass full screen
Full Flexscreens
Aluminum Screening Material

More about screen options

Grills

Multiple Grill Patterns Available

3/4″ Contoured Grill Between the Glass

Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes
3/4″ Contoured SDL with spacer bar

Our simulated divided light grill incorporates a space giving the look of true divided light

Grid Patterns

Profiles

Thermal Data

NFRC Thermal Performance Data

GLAZING	U-VALUE	SHGC	VLT	CR
Energy Star U4	0.25	0.27	0.47	47	N,NC
Energy Star III	0.29	0.37	0.52	59	NC
Low E w/ Argon	0.29	0.29	0.52	59	NC
High Perf. Low E	0.33	0.29	0.52	56
Clear	0	0	0	-	-

NFRC Thermal Performance Data (with Grids)

GLAZING	U-VALUE	SHGC	VLT	CR
Energy Star U4	0	0	0	0	N,NC
Energy Star III	0.26	0.37	0.51	62	N,NC
Low E w/ Argon	0.25	0.28	0.51	65	N,NC
High Perf. Low E	0.30	0.28	0.51	58
Clear	0	0	0	-	-

Cross Section

Download PDF

Sizing

300 Series – Horizontal Slider (Vinyl Sized)

CALL SIZE	UNIT DIMENSION	ROUGH OPENING	SASH OPENING MEASUREMENTS	CLEAR OPENING (SQ. FT.)	VISIBLE GLASS (SQ. FT.)
3020-SL	35 1/2 x 23 1/2	36 X 24	14 1/2 x 19 1/8	1.925	3.686
3026-SL	35 1/2 X 29 1/2	36 X 30	14 1/2 x 25 1/8	2.529	4.873
3030-SL	35 1/2 X 35 1/2	36 X 36	14 1/2 x 31 1/8	3.134	6.061
3036-SL	35 1/2 X 41 1/2	36 X 42	14 1/2 x 37 1/8	3.738	7.248
3040-SL	35 1/2 X 47 1/2	36 X 48	14 1/2 x 43 1/8	4.342	8.436
3046-SL	35 1/2 X 53 1/2	36 X 54	14 1/2 x 49 1/8	4.946	9.623
3050-SL	35 1/2 X 59 1/2	36 X 60	14 1/2 x 55 1/8	5.55	10.81
3056-SL	35 1/2 X 65 1/2	36 X 66	14 1/2 x 61 1/8	6.154	11.99
3420-SL	39 1/2 x 23 1/2	40 X 24	16 1/2 x 19 1/8	2.191	4.203
3426-SL	39 1/2 X 29 1/2	40 X 30	16 1/2 x 25 1/8	2.878	5.557
3430-SL	39 1/2 X 35 1/2	40 X 36	16 1/2 x 31 1/8	3.566	6.911
3436-SL	39 1/2 X 41 1/2	40 X 42	16 1/2 x 37 1/8	4.253	8.266
3440-SL	39 1/2 X 47 1/2	40 X 48	16 1/2 x 43 1/8	4.941	9.62
3446-SL	39 1/2 X 53 1/2	40 X 54	16 1/2 x 49 1/8	5.628	10.97
3450-SL	39 1/2 X 59 1/2	40 X 60	16 1/2 x 55 1/8	6.316	12.32
3456-SL	39 1/2 X 65 1/2	40 X 66	16 1/2 x 61 1/8	7.003	13.68
3820-SL	43 1/2 x 23 1/2	44 X 24	18 1/2 x 19 1/8	2.457	4.72
3826-SL	43 1/2 X 29 1/2	44 X 30	18 1/2 x 25 1/8	3.227	6.241
3830-SL	43 1/2 X 35 1/2	44 X 36	18 1/2 x 31 1/8	3.998	7.762
3836-SL	43 1/2 X 41 1/2	44 X 42	18 1/2 x 37 1/8	4.769	9.283
3840-SL	43 1/2 X 47 1/2	44 X 48	18 1/2 x 43 1/8	5.54	10.8
3846-SL	43 1/2 X 53 1/2	44 X 54	18 1/2 x 49 1/8	6.311	12.32
3850-SL	43 1/2 X 59 1/2	44 X 60	18 1/2 x 55 1/8	7.082	13.84
3856-SL	43 1/2 X 65 1/2	44 X 66	18 1/2 x 61 1/8	7.852	15.36
4020-SL	47 1/2 x 23 1/2	48 X 24	20 1/2 x 19 1/8	2.722	5.238
4026-SL	47 1/2 X 29 1/2	48 X 30	20 1/2 x 25 1/8	3.576	6.925
4030-SL	47 1/2 X 35 1/2	48 X 36	20 1/2 x 31 1/8	4.43	8.613
4036-S	47 1/2 X 41 1/2	48 X 42	20 1/2 x 37 1/	5.285	10.3
4040-SL	47 1/2 X 47 1/2	48 X 48	20 1/2 x 43 1/8	6.139	11.98
4046-SL	47 1/2 X 53 1/2	48 X 54	20 1/2 x 49 1/8	6.993	13.67
4050-SL	47 1/2 X 59 1/2	48 X 60	20 1/2 x 55 1/8	7.847	15.36
4056-SL	47 1/2 X 65 1/2	48 X 66	20 1/2 x 61 1/8	8.701	17.05
4620-SL	53 1/2 x 23 1/2	54 X 24	23 1/2 x 19 1/8	3.121	6.014
4626-SL	53 1/2 X 29 1/2	54 X 30	23 1/2 x 25 1/8	4.1	7.951
4630-SL	53 1/2 X 35 1/2	54 X 36	23 1/2 x 31 1/8	5.079	9.889
4636-SL	53 1/2 X 41 1/2	54 X 42	23 1/2 x 37 1/8	6.058	11.82
4640-SL	53 1/2 X 47 1/2	54 X 48	23 1/2 x 43 1/8	7.037	13.76
4646-SL	53 1/2 X 53 1/2	54 X 54	23 1/2 x 49 1/8	8.016	15.7
4650-SL	53 1/2 X 59 1/2	54 X 60	23 1/2 x 55 1/8	8.996	17.63
4656-SL	53 1/2 X 65 1/2	54 X 66	23 1/2 x 61 1/8	9.975	19.57
5020-SL	59 1/2 x 23 1/2	60 X 24	26 1/2 x 19 1/8	3.519	6.79
5026-SL	59 1/2 X 29 1/2	60 X 30	26 1/2 x 25 1/8	4.623	8.977
5030-SL	59 1/2 X 35 1/2	60 X 36	26 1/2 x 31 1/8	5.727	11.16
5036-S	59 1/2 X 41 1/2	60 X 42	26 1/2 x 37 1/8	6.832	13.35
5040-SL	59 1/2 X 47 1/2	60 X 48	26 1/2 x 43 1/8	7.936	15.54
5046-SL	59 1/2 X 53 1/2	60 X 54	26 1/2 x 49 1/8	9.04	17.72
5050-SL	59 1/2 X 59 1/2	60 X 60	26 1/2 x 55 1/8	10.14	19.91
5620-SL	65 1/2 x 23 1/2	66 X 24	29 1/2 x 19 1/8	3.917	7.566
5626-SL	65 1/2 X 29 1/2	66 X 30	29 1/2 x 25 1/8	5.147	10
5630-SL	65 1/2 X 35 1/2	66 X 36	29 1/2 x 31 1/8	6.376	12.44
5636-SL	65 1/2 X 41 1/2	66 X 42	29 1/2 x 37 1/8	7.605	14.87
5640-SL	65 1/2 X 47 1/2	66 X 48	29 1/2 x 43 1/8	8.834	17.31
5646-SL	65 1/2 X 53 1/2	66 X 54	29 1/2 x 49 1/8	10.06	19.75
5650-SL	65 1/2 X 59 1/2	66 X 60	29 1/2 x 55 1/8	11.29	22.19
6020-SL	71 1/2 x 23 1/2	72 X 24	32 1/2 x 19 1/8	4.316	8.342
6026-SL	71 1/2 X 29 1/2	72 X 30	32 1/2 x 25 1/8	5.67	11.02
6030-SL	71 1/2 X 35 1/2	72 X 36	32 1/2 x 31 1/8	7.024	13.71
6036-SL	71 1/2 X 41 1/2	72 X 42	32 1/2 x 37 1/8	8.378	16.4
6040-SL	71 1/2 X 47 1/2	72 X 48	32 1/2 x 43 1/8	9.733	19.09
6046-SL	71 1/2 X 53 1/2	72 X 54	32 1/2 x 49 1/8	11.08	21.77
