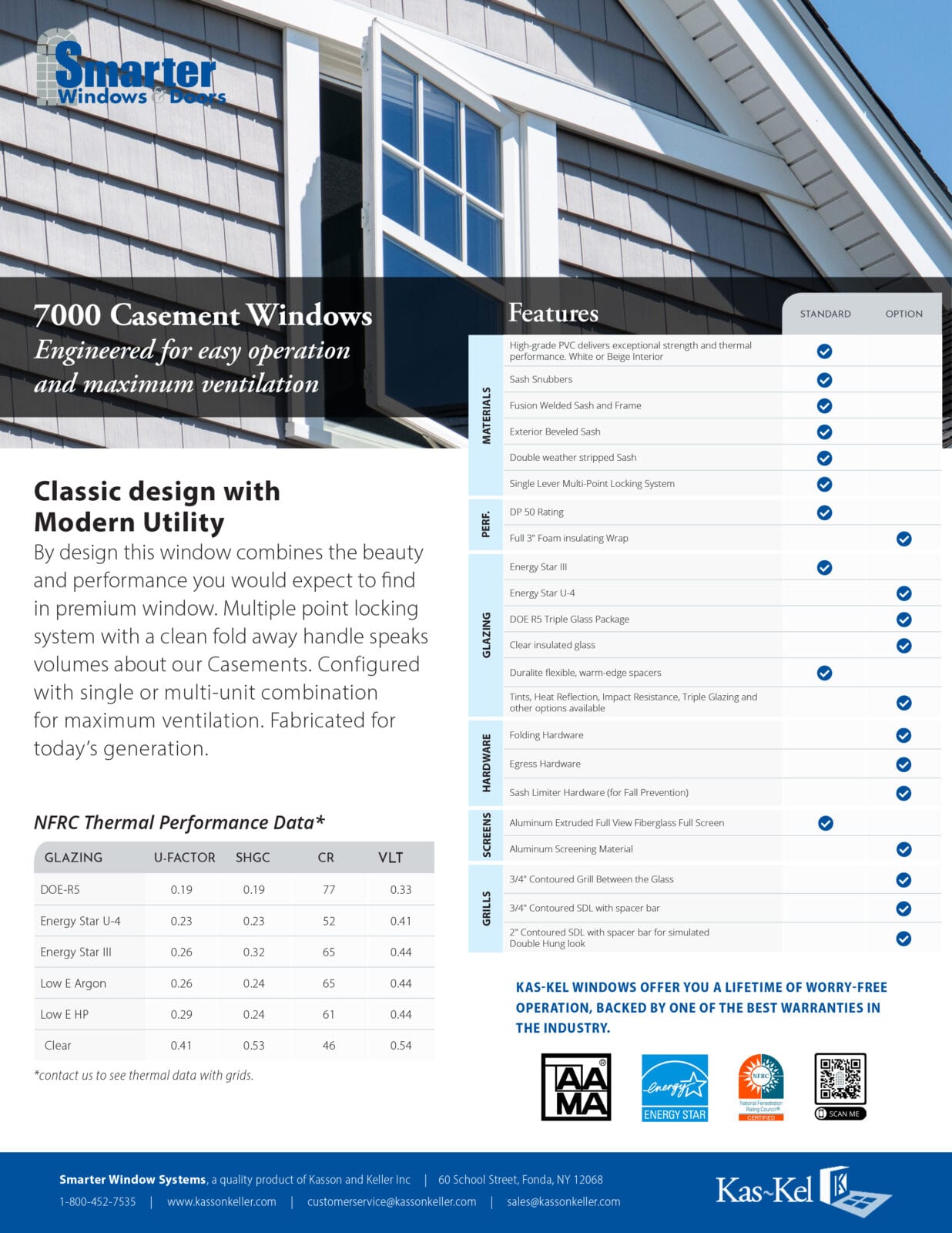

7000 Casement Window

engineered for easy operation and maximum ventilation.

Description

Smarter Windows 7000 Casement windows are engineered for easy operation and maximum ventilation.

Multi-point locking provides added safety and security, and all models are available in single and multi-unit combinations.

Modern utility meets classic design

Casement windows are versatile windows that work well in most rooms, combining beauty and high functionality.

A single sash opens outward from hinges along the side of the window frame, similar to how a door operates. A hand crank on the inside of the window frame allows for easy open and close functionalities. Clever design keeps the window from flying open in strong wind or breezes.

Casement windows can also be installed to open to the left or right, giving way to a wide range of aesthetic window arrangements (singular or multi unit design).

Materials

Standard

High-grade PVC delivers exceptional strength and thermal performance
Fusion Welded Sash and Frame
Beveled Sash
Sash Snubbers
Double weather stripped Sash
Single Lever Multi-Point Locking System

More About Vinyl Construction

Glass Options

Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Energy Star III

Options

Energy Star III
(3/4″) (Recommended)
Energy Star U-4
(3/4″)
DOE R5
(1″) Triple Glass Package
Clear insulated glass (3/4″)
Impact Resistance, Tints, Heat Reflection, Triple Glazing and other options available

* Courtesy Truseal Technologies

More About Glass Options

Performance

Standard

DP 50 Rating

More about DP Ratings

Hardware

Standard

Single Lever Multi-Point Locking System

Options

Folding Hardware
Egress Hardware
Sash Limiter Hardware (for Fall Prevention)

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

More about Hardware

Screens

Standard

Aluminum Extruded Full View Fiberglass Full Screen

Options

Aluminum Screening Material

More about Screen Options

Grills

Multiple Grill Patterns Available

3/4″ Contoured Grill Between the Glass

Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.
3/4″ Contoured SDL with spacer bar

Our simulated divided light grill incorporates a space giving the look of true divided light
2″ Contoured SDL with spacer bar

for simulated Double Hung look

Grid Patterns

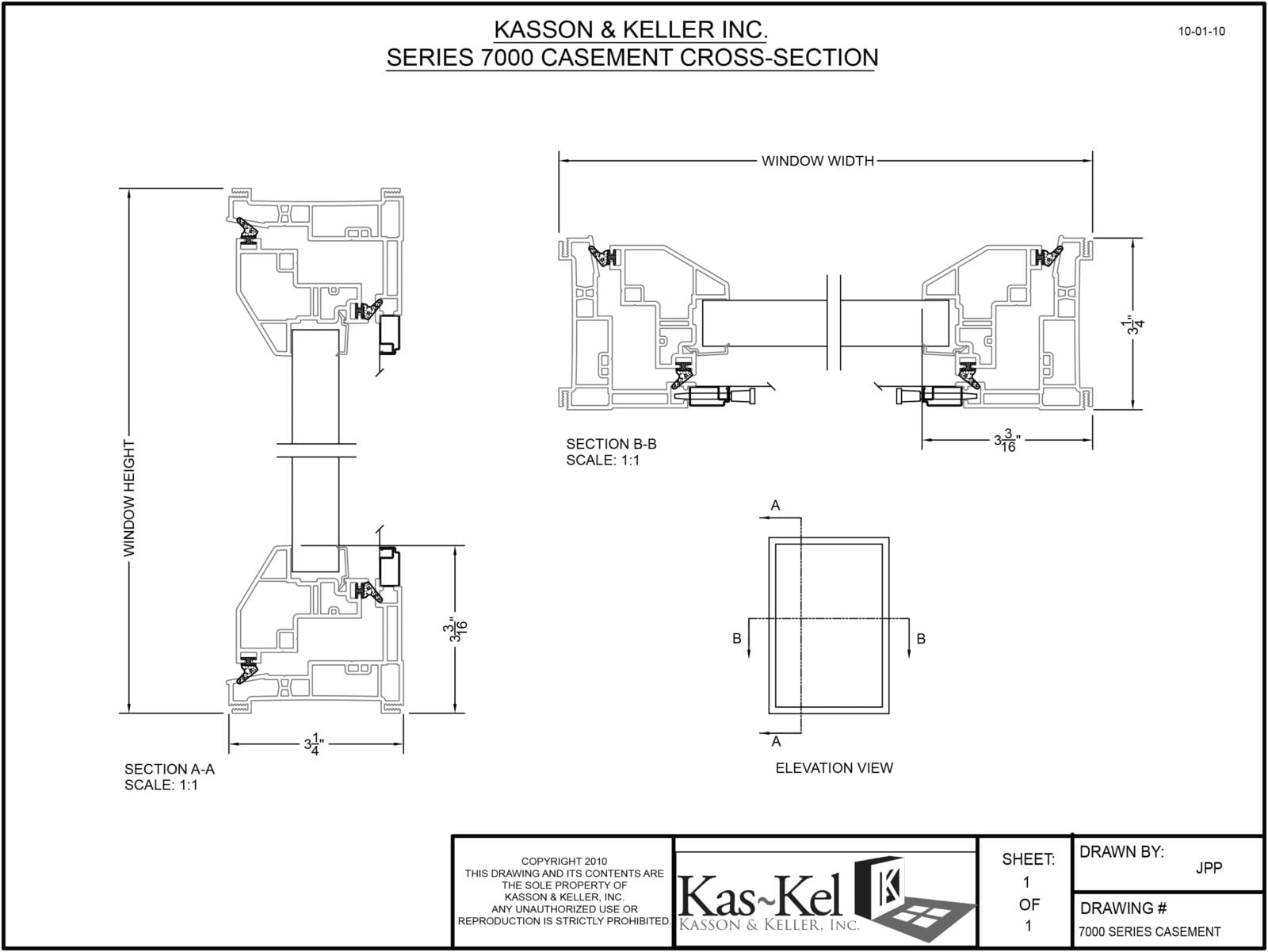

Profiles

Thermal Data

NFRC Thermal Performance Data

Glazing	U-Value	SHGC	VLT
DOE – R5 – Triple	0.21	0.19	0.33
Low E w/ Argon	0.28	0.24	0.44
High Perf. Low E	0.32	0.24	0.44
Clear	0.41	0.53	0.54

NFRC Testing Chart – Department of Energy R5 Program – Triple Glazing Package

Effective Date: March 1, 2010

		U-FACTOR	SHGC	VT	CR	DBL LOW E	GAS
SSB	WITHOUT GRIDS	0.20	0.19	0.35	74	Y	DOUBLE ARGON
SSB	WITH GRIDS	0.21	0.18	0.32	74	Y	DOUBLE ARGON
DSB	WITHOUT GRIDS	0.22	0.19	0.35	74	Y	DOUBLE ARGON
DSB	WITH GRIDS	0.22	0.18	0.32	74	Y	DOUBLE ARGON

Sizing

PRODUCT	MINIMUM TIP UP SIZE	MAXIMUM LIMITS
7000 Casement Window	16 3/4 x 19 1/2	Minimum length 2-lite 34″ TTT. Maximum width single 34″ x 72″ height. Smaller widths maximum height 72″.

PLEASE NOTE:

Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.

Glass must be ordered from an outside source for units larger than 72” one way.

SPECIAL REQUIREMENTS?
Contact Us and We will see if we can Help!
